1. Introduction: Why Current Divider and Voltage Divider Matter for PCBA

Accurate circuit analysis is foundational to PCBA reliability. Two of the most important analytical tools engineers use are the current divider rule and the voltage divider formula — essential for understanding how currents and voltages distribute through circuit networks. The current divider calculates how total current splits among parallel branches, while the voltage divider determines how supply voltage drops across components in series. Mastering these rules helps avoid common PCBA failures such as sensor misbias, power imbalance, or component overheating.

Both sensor circuits and power modules require precise evaluation of current distribution and voltage levels to prevent signal distortion, unexpected load conditions, and PCB failures during system integration. In this guide, we break down both formulas, compare their differences, and explain how HCJMPCBA helps validate and test division logic during PCBA design and assembly.

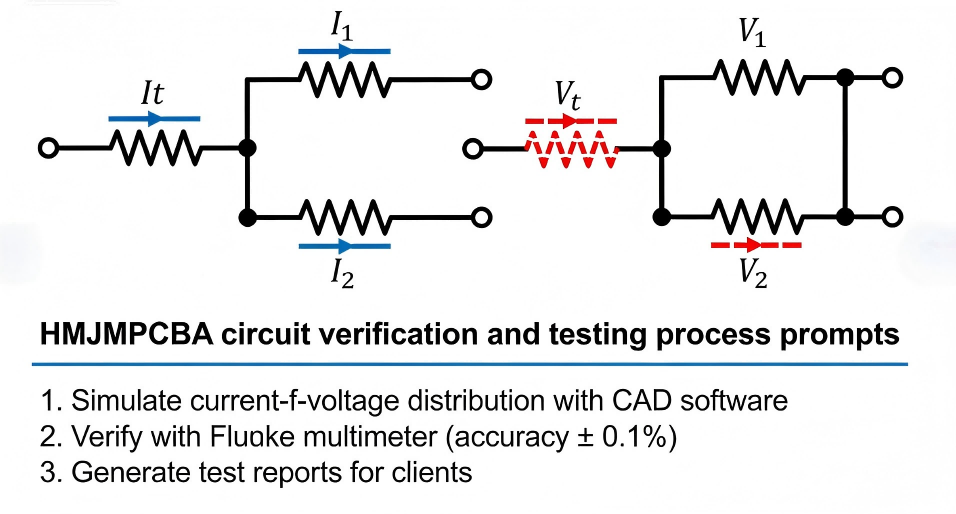

Pcba Current Voltage Distribution Scenarios Hcjmpcba

2. What Is the Current Divider? Core Definition & Formula

2.1 Definition of Current Divider

A current divider is a parallel circuit that splits the total input current among multiple branches connected across the same voltage. Because each branch sees the same voltage, the portion of total current flowing through each branch depends on the relative resistances of the branches. Basic Electronics Tutorials

In electronics, the current entering a parallel combination of resistors divides in such a way that lower resistance branches receive more current. This is due to the inverse relationship between resistance and current flow defined by Ohm’s Law.

2.2 Derivation of the Current Divider Formula

For resistors R1,R2,…,RnR_1, R_2, …, R_nR1​,R2​,…,Rn​ in parallel, the current through a specific branch RxR_xRx​ is given by:

Ix=Itotal×RtotalRxI_x = I_{total} \times \frac{R_{total}}{R_x}Ix​=Itotal​×Rx​Rtotal​​

Where:

• IxI_xIx​ = current through branch $x$

• ItotalI_{total}Itotal​ = total current entering the parallel network

• RtotalR_{total}Rtotal​ = equivalent resistance of the parallel network

• RxR_xRx​ = resistance of branch $x$

This formula follows from the fact that in a parallel circuit all branches share the same voltage and current divides inversely with resistance. Basic Electronics Tutorials

Key point: The current divider rule applies only to parallel circuits, where the same voltage appears across each branch.

Typical use: Determine how much current flows through each branch of a power distribution network in a PCBA, such as bias networks or parallel sensor lines.

3. What Is the Voltage Divider? Core Definition & Formula

3.1 Definition of Voltage Divider

A voltage divider is a series circuit that splits the total supply voltage into proportional voltage drops across series components. Because the same current flows through each component in a series circuit, the voltage across each is proportional to its resistance.

Voltage dividers are fundamental for creating reference voltages or reducing voltage levels before feeding sensitive components (e.g., MCU inputs).

3.2 Derivation of the Voltage Divider Formula

In a series network of resistors, the voltage drop VxV_xVx​ across a resistor RxR_xRx​ is:

Vx=Vtotal×RxRtotalV_x = V_{total} \times \frac{R_x}{R_{total}}Vx​=Vtotal​×Rtotal​Rx​​

Where:

• VxV_xVx​ = voltage across component $x$

• VtotalV_{total}Vtotal​ = total supply voltage

• Rtotal=R1+R2+…+RnR_{total} = R_1 + R_2 + … + R_nRtotal​=R1​+R2​+…+Rn

This formula comes directly from applying Ohm’s Law and Kirchhoff’s Voltage Law (the sum of voltage drops in a loop equals the source voltage).

Typical use: Create precise reference voltages for analog-to-digital converters, biasing amplifiers, or feeding control logic in PCBA designs.

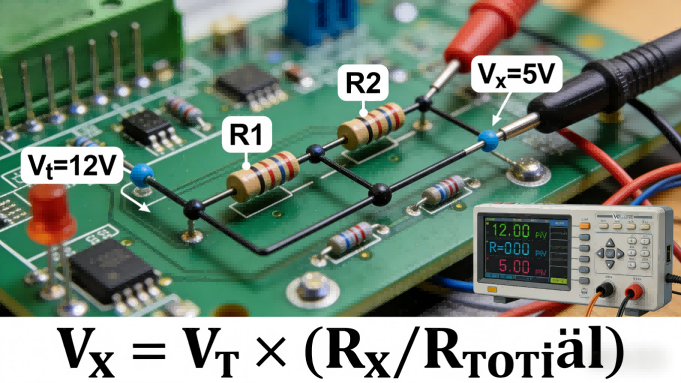

Voltage Distribution Application In Pcba Hcjmpcba

4. 10 Key Differences Between Current Divider and Voltage Divider

5. Practical Examples: Finding Current in Parallel Circuits

To illustrate how current division works in practice, consider a simple parallel network:

Example: Two resistors R1=4ΩR_1 = 4ΩR1​=4Ω and R2=12ΩR_2 = 12ΩR2​=12Ω share a total current of 4A.
Equivalent resistance Rtotal=3ΩR_{total} = 3ΩRtotal​=3Ω.
Current through R1R_1R1​:

I1=4A×3Ω4Ω=3AI_1 = 4A \times \frac{3Ω}{4Ω} = 3AI1​=4A×4Ω3Ω​=3A

Current through R2R_2R2​:

I2=4A×3Ω12Ω=1AI_2 = 4A \times \frac{3Ω}{12Ω} = 1AI2​=4A×12Ω3Ω​=1A

Here the smaller resistance draws more current, consistent with the rule.

6. Why Mastering Divider Rules Matters for PCBA Engineers

Accurate application of the current divider rule and voltage divider formula directly impacts PCBA performance, particularly in the following areas:

• Power distribution networks – Avoid hot spots and ensure balanced currents.

• Signal conditioning – Maintain stable reference voltages for ADC/Sensor interfaces.

• Load sharing – Prevent overloading a single branch of your design.

Knowing how to verify these formulas through simulation and measurement helps reduce errors during PCB development and production.

Flowchart For Derivation Of Current Distribution Formula Hcjmpcba

7. HCJMPCBA’s Unique Capabilities in Division Verification & PCBA Testing

HCJMPCBA supports PCBA designers and buyers with capabilities that ensure correct circuit division behavior in finished products:

• Custom Simulation & Validation: Using CAD tools to simulate current and voltage dividers before hardware production.

• Advanced Measurement Tools: Oscilloscopes and precision source meters verify divider behavior under real load conditions.

• Standardized Test Reports: Delivered with PCBA batches — showing measured results align with theoretical divider calculations.

These processes reduce procurement risk, prevent field failures, and improve overall product reliability — especially for high-precision or safety-critical electronics.

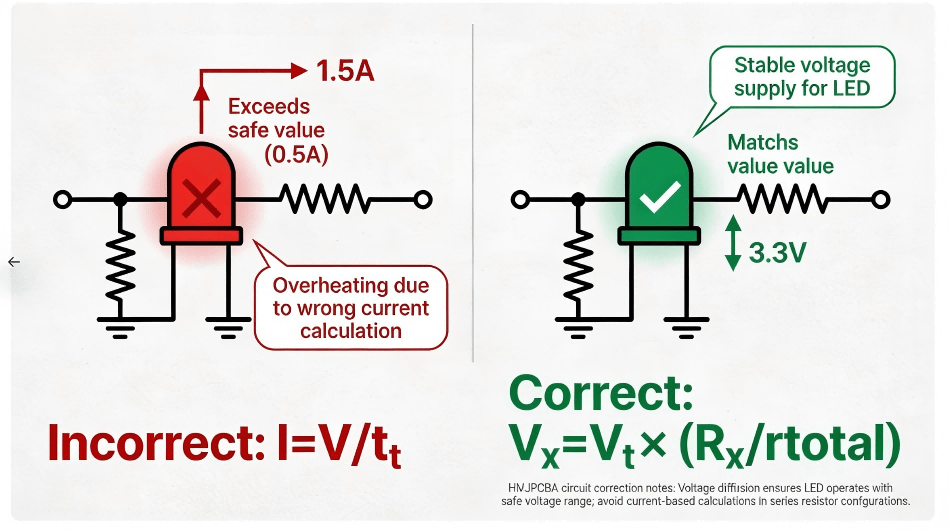

Comparison Of Common Error Cases Hcjmpcba Current Divider

8. Frequently Asked Questions (FAQs)

Q1: Can the current divider rule be used in AC circuits?
Yes. By replacing resistances with impedances (Z), current division still applies in AC networks.

Q2: What’s the difference between current divider law and current divider rule?
They refer to the same principle — describing how current splits among parallel branches.

Q3: Does voltage division work for more than two resistors?
Yes. The voltage divider formula extends to any number of series components.

9. Conclusion & Call to Action

Understanding the difference between the current divider rule and voltage divider formula — and knowing when to apply each — is essential for reliable PCBA design and analysis. Accurate current and voltage division calculations ensure balanced power distribution, stable reference levels, and robust PCB performance. ■

For engineers and procurement teams looking to validate these calculations in real hardware, HCJMPCBA’s customized simulation, testing, and verification services provide peace of mind and improved product quality.
