Direct Answer: How to Use a Multimeter

A multimeter is used to measure voltage (V), resistance (Ω), and current (A) in electrical circuits.

To use a multimeter correctly:

          1.Select the correct measurement mode (Voltage, Resistance, Continuity, or Current).

          2.Insert probes into the proper ports.

          3.Place the probes on the circuit test points.

          4.Read the measurement result from the display.

These steps allow engineers to safely diagnose electronic circuits, PCB boards, batteries, and power supplies.

3 Key Takeaways Engineers Should Know

1️⃣ Always Start with the Correct Mode

Before testing a circuit, choose the correct dial setting:

          V⎓ – DC voltage

          V~ – AC voltage

          Ω – resistance

          🔔 (continuity) – short circuit detection

Selecting the wrong mode is the most common mistake when learning how to use a digital multimeter.

2️⃣ Use Ground as Your Reference

When testing electronics such as PCB boards, always connect the black probe to ground (GND) and measure signals using the red probe.

This method is widely used in PCB troubleshooting and manufacturing testing.

3️⃣ Cold Testing Before Power Testing

Professional technicians follow this sequence:

This prevents accidental short circuits and protects sensitive components during printed circuit board testing.

Understanding the Multimeter: What It Measures

A digital multimeter (DMM) measures three fundamental electrical parameters.

These measurements help engineers diagnose problems in:

          power supplies

          industrial control boards

          consumer electronics

          IoT devices

          automotive PCBs

In electronics manufacturing, multimeters are often used for initial circuit validation before automated testing systems.

Step-by-Step: How to Use a Multimeter

Step 1: Insert the Test Leads

Most multimeters have three ports:

          COM – black probe

          VΩmA – red probe for voltage/resistance

          10A – high current testing

Always connect the black probe to COM first.

Step 2: Select the Measurement Mode

Rotate the dial to the correct measurement type.

Typical modes include:

          DC voltage

          AC voltage

          resistance

          diode testing

          continuity testing

Modern digital multimeters automatically detect ranges, making them easier for beginners.

Step 3: Test Voltage

To measure voltage:

          1.Set the multimeter to DC voltage (V⎓).

          2.Place the black probe on ground.

          3.Touch the red probe to the test point.

Example results:

Voltage measurement is the most common step when learning how to check a circuit board with a multimeter.

Step 4: Test Continuity

Continuity testing detects short circuits or broken connections.

Steps:

          1.Set the dial to continuity mode (beep symbol).

          2.Touch probes to both ends of a circuit path.

          3.If the meter beeps, the circuit is continuous.

Engineers often use this method for:

          PCB trace inspection

          cable diagnostics

          solder joint verification

Step 5: Measure Resistance

Resistance testing helps identify:

          damaged resistors

          broken traces

          incorrect component values

To measure resistance:

          1.Set the dial to Ω.

          2.Place probes across the component.

          3.Read the value displayed.

Important rule:

Never measure resistance while the circuit is powered.

Hcjmpcba Multimeter Anatomy Dial & Ports Layout

How Engineers Use Multimeters for PCB Testing

In professional electronics manufacturing, multimeters are part of the first-level diagnostic process before automated inspection.

For example, during PCBA prototype validation, engineers typically verify:

At HCJMPCBA, multimeter testing is integrated into the early New Product Introduction (NPI) stage before boards move to automated testing systems like ICT and functional testing.

This hybrid approach ensures high reliability for industrial, medical, and AI electronics applications.

Hcjmpcba Continuity Test On Pcb Pad Trace

Common Multimeter Mistakes

Even experienced technicians occasionally make these errors.

Measuring Resistance on a Powered Circuit

This can damage both the multimeter and the PCB.

Incorrect Probe Contact

Oxidized pads may cause unstable readings.
Technicians often lightly scrape the probe tip to ensure proper contact.

Ignoring Probe Resistance

Probe wires themselves add 0.2–0.5Ω, which affects low-resistance measurements.

Using the Wrong Mode

Measuring AC voltage while in DC mode can show incorrect readings.

Advanced Tips for Accurate Multimeter Measurements

Professional engineers use several techniques to improve accuracy.

Use Min/Max Recording

This captures sudden voltage drops during intermittent faults.

Identify Ghost Voltages

Electromagnetic interference can create false readings in high-impedance circuits.

Verify Ground First

Always confirm ground integrity before measuring signal rails.

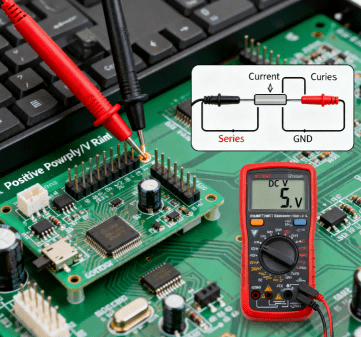

Hcjmpcba Voltage & Current Testing On Assembled Pcb

FAQ: Multimeter Testing Questions

Q:How do you use a multimeter to test a PCB?

A:Set the meter to continuity or voltage mode and probe the PCB test points to verify connections and power rails.

Q:What is the easiest measurement for beginners?

A:Voltage testing is usually the easiest way to start learning how to use a multimeter.

Q:Can a multimeter detect a short circuit?

A:Yes. Continuity mode will beep when a short circuit exists between two points.

Q:What industries rely heavily on multimeter testing?

A:Multimeters are widely used in:

          electronics manufacturing

          automotive repair

          industrial automation

          HVAC control systems

          IoT device development

Conclusion

Understanding how to use a multimeter is a fundamental skill in electronics.

From basic voltage checks to advanced PCB diagnostics, multimeters remain one of the most important tools for engineers, technicians, and hardware developers.

In professional electronics manufacturing, they serve as the first diagnostic step before automated testing systems.
