PCB Box Build Assembly
Turnkey Box Build Assembly Services: From PCBA to Market-Ready Products
1. What is PCB Box Build Assembly? (Definition & Core Positioning)
Key Boundaries of Our Box Build Service
Box Build vs. Traditional Fragmented Assembly
| Metric | HCJMPCBA Box Build Assembly | Traditional Fragmented Assembly |
|---|---|---|
| Supplier Management | 1 single point of contact | 3+ suppliers (PCB, components, assembly) |
| Cost Efficiency | 20% lower total cost (bulk sourcing + integrated labor) | Higher overhead (multiple shipping & admin fees) |
| Lead Time | 30% faster (synchronized processes) | Delays from supplier coordination |
| Quality Consistency | Unified QC standards (≤500ppm defect rate) | Variable quality across suppliers |
2. Why Choose HCJMPCBA’s Box Build EMS? (Core Advantages with Data)
Our custom box build assembly service delivers measurable value through precision, efficiency, and compliance—backed by quantifiable technical parameters:
| Core Advantage | Technical Parameters | Business Value for You |
|---|---|---|
| One-Stop Integration | Covers PCB manufacturing → component sourcing → integration → testing → delivery | 30% reduction in supplier management overhead |
| Precision Sourcing | 400+ global qualified suppliers; 98% delivery stability | 15–25% lower component procurement costs |
| High-Precision Integration | Structural installation tolerance ±0.1mm; cable crimping force ≥80N (meets IPC-A-620) | Reduced field failures from loose connections or misalignment |
| End-to-End Quality Control | ISO 9001/IATF 16949/ISO 13485 certified; ≤500ppm defect rate | Compliance with industry regulations; lower warranty costs |
| Flexible Production Scaling | Supports 10–500 units (small-batch) & 10k+ units (mass production); line changeover ≤4hrs | Adapt to R&D prototypes or volume production without retooling delays |
| Customized Testing Solutions | 100% coverage for ICT/FCT; environmental testing (temp/humidity/vibration) | Guaranteed functional performance in target operating conditions |
Keywords: box build cost optimization, high-precision electronics integration, custom box build assembly

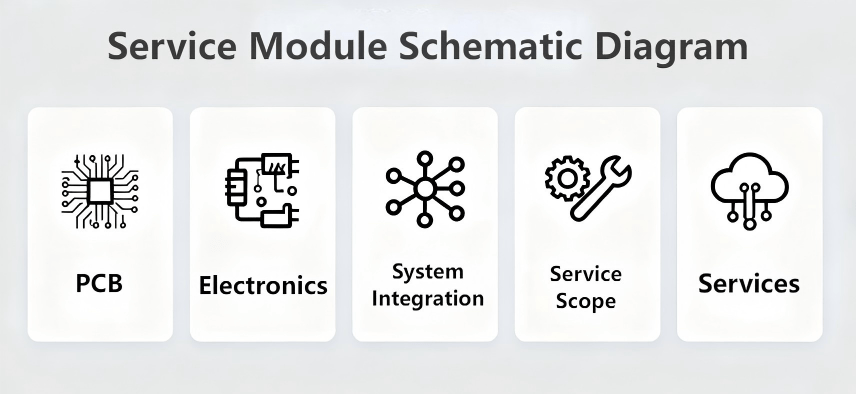

3. HCJMPCBA’s Box Build Service Scope (5 Core Modules)
Our electronics integration services cover every stage of turnkey production—no gaps in delivery:
| Service Module | Detailed Services | Key Parameters |
|---|---|---|
| PCB & Component Sourcing | – PCB fabrication (rigid/flex/ceramic) – Electronic component sourcing (passives, ICs, connectors) – Structural part procurement (enclosures, heat sinks) |
PCB warpage ≤0.75%; component authenticity 100% verified |
| PCB Assembly | – SMT placement – Through-hole insertion – BGA/QFN soldering |
SMT accuracy ±0.01mm; BGA void rate ≤25% (IPC-7095) |
| Mechanical Integration | – Enclosure assembly – Cable crimping/wiring (AWG 20–30) – Heat sink installation – IP65/IP67 waterproofing (optional) |
Cable crimp force ≥80N; heat sink fit rate ≥95% |
| Functional & Environmental Testing | – ICT (in-circuit testing) – FCT (functional testing) – Temperature-humidity cycling (-40~125℃, 500 cycles) – Vibration testing (10–2000Hz, 10g) |
Test coverage 100%; pass rate ≥99.5% |
| Packaging & Logistics | – Anti-static packaging – Custom labeling (traceability codes) – Global shipping (DHL/FedEx/ocean freight) |
Shipping damage rate ≤0.1% |

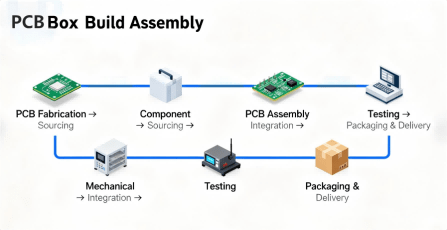

4. PCB Box Build Manufacturing Process (8 Core Steps with Parameters)
5. Material & Component Selection Guidelines (Compatibility & Parameters)
Choosing compatible materials is critical for box build electronics performance—we guide you to balance cost, durability, and needs:
| Component Type | Option | Key Parameters | Ideal Application | Compatibility Notes |
|---|---|---|---|---|
| Structural Enclosure | Aluminum Alloy | Density 2.7g/cm³; Temp range -40~125℃; IP65-rated | Industrial/Automotive Electronics | Matches PCB CTE (6–8 ppm/℃) to reduce thermal stress |
| ABS Plastic | Cost 30% lower than aluminum; Temp range -20~80℃ | Consumer Electronics | Use anti-static grade for sensitive components | |
| Cable Harness | UL 1015 | Temp rating 105℃; Voltage 300V; AWG 20–30 | General-Purpose Electronics | Compatible with standard crimp terminals |
| PTFE Cable | Temp rating 260℃; Chemical resistance; Low dielectric loss | High-Temp/High-Frequency Devices | Requires PTFE-compatible crimp tools | |
| Heat Sink | Aluminum Heat Sink | Thermal conductivity ≥200W/m·K; Weight 50–200g | Mid-Power Devices (≤50W) | Use thermal grease (thermal resistance ≤0.5℃/W) for mounting |
| Heat Pipe | Thermal resistance ≤0.2℃/W; Heat dissipation ≥100W | High-Power Devices (≥50W) | Requires precise mounting (±0.1mm tolerance) |

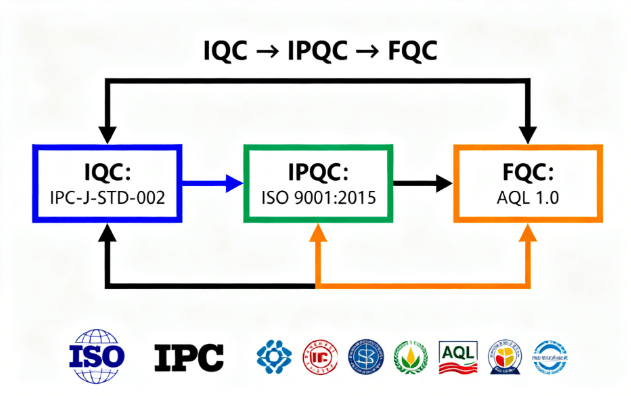

6. Quality Control System for Box Build Assembly (Standards & Parameters)
Stage 1: Incoming Quality Control (IQC)
Stage 2: In-Process Quality Control (IPQC)
Stage 3: Final Quality Control (FQC)
Compliance Certifications

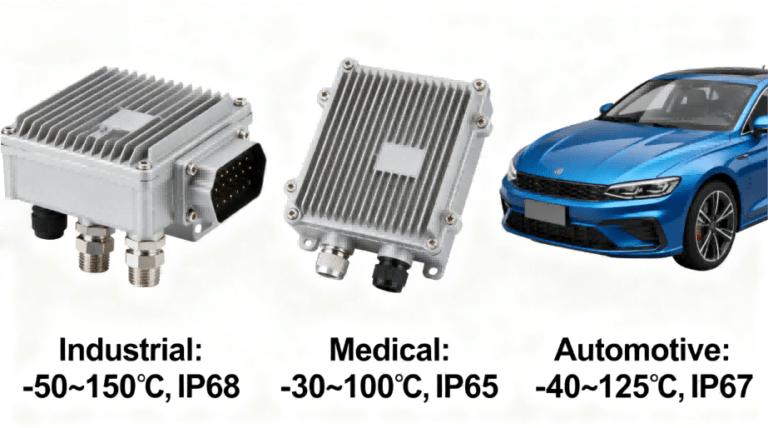

7. Industry-Specific Box Build Solutions (Technical Case Studies)
Industrial Control: High-Stability Box Build Assembly
Medical Device: ISO 13485-Compliant Box Build
Automotive Electronics: AEC-Q100 Box Build Integration
8. HCJMPCBA’s Box Build Capabilities (Differentiators)
Technical Capabilities
Delivery Capabilities
Value-Added Services
9. In-Depth FAQs: Box Build Assembly
Frequently Asked Questions about Box Build Assembly
Q1: What’s the difference between PCB assembly and box build assembly?
PCB assembly focus only on mounting components onto a bare PCB. PCB Box Build Assembly at HCJMPCBA extends this to component sourcing, mechanical structural integration, complex cabling, final testing, and retail packaging—delivering a fully functional, market-ready device.
Q2: What is included in your Box Build Assembly services?
Our turnkey box build services include: Mechanical sub-assembly, PCBA integration, high-density cable harnesses, firmware/software loading, precision enclosure assembly, and rigorous functional testing.
Q3: How do you ensure PCB, component, and structural compatibility?
We perform DFM/DFA Analysis to verify CTE (Coefficient of Thermal Expansion) matching, such as AlN PCBs with aluminum enclosures. We also recommend building 1–2 prototypes to validate mechanical fit, thermal performance, and signal integrity before mass production.
Q4: Can HCJMPCBA handle complex cable management?
Yes. We specialize in high-density cable routing for medical and industrial devices. Our process ensures optimized thermal efficiency, signal integrity, and high vibration resistance for mission-critical applications.
Q5: Do you provide full functional testing (FCT)?
Absolutely. We develop custom testing jigs and software environments based on your specific project requirements. This includes ICT, FCT, burn-in testing, and safety validation to ensure 100% product reliability.
Q6: What certifications are required for medical device box build?
Medical box build requires ISO 13485 for quality management and often ISO 10993 for biocompatibility. We comply with FDA 21 CFR Part 820 (US) and CE IVDR (EU) standards to support our global medical clients.
Q7: How to optimize box build costs for small-batch production?
We suggest: 1. Panelizing PCBs to reduce fab costs; 2. Using standard mechanical components where possible; 3. Leveraging our bulk component sourcing network to achieve a 15–25% cost reduction.
Q8: What’s the typical lead time for custom box build?
Small-batch (10–500 units): 7–12 days. Mass production (10k+ units): 15–25 days. We offer rush orders (5–7 days) for projects with error-free files and in-stock components.
Q9: How do you handle component obsolescence during the product lifecycle?
Our service includes proactive alerts 6–12 months prior to discontinuation, drop-in replacement sourcing, and technical validation of alternative components to ensure long-term manufacturing continuity.
