Prototype to Mass Production: The Complete NPI Process in PCB & PCBA Manufacturing

In electronics manufacturing, moving from a PCB prototype to mass production is one of the most critical stages in product development. Many products fail during this transition because the design was not properly prepared for manufacturing.

The NPI process (New Product Introduction) ensures that a product design can be manufactured efficiently, reliably, and at scale. It bridges the gap between engineering design and large-scale production.

This guide explains how the NPI process works in real PCB and PCBA manufacturing environments and how companies can successfully scale from prototype testing to stable mass production.

What is the NPI Process in Electronics Manufacturing?

The New Product Introduction (NPI) process is a structured engineering workflow that prepares a product for mass manufacturing. It validates the design, verifies manufacturability, and ensures production stability before large-scale production begins.

In PCB and PCBA manufacturing, the NPI process typically includes design verification, prototype fabrication, assembly validation, DFM optimization, and pilot production.

A well-executed NPI process significantly reduces manufacturing risks such as assembly defects, supply chain delays, and unexpected production costs.

Comparison Of Pcb To Pcba Finished Products Hcjmpcba

Comparison Of Pcb To Pcba Finished Products Hcjmpcba

1. The NPI Lifecycle: A Data-Driven Roadmap

Scaling production requires more than just increasing order quantities. It requires a gated validation process. We categorize the journey into four distinct engineering stages:

NPI Stage Technical Objective Standard Reference
EVT (Engineering Validation) Verifying fundamental circuit logic and signal integrity (SI). IPC-2251 (High-Speed Design)
DVT (Design Validation) Testing under environmental stress (Thermal, Vibration, EMI). IEC 60068 Series
PVT (Production Validation) Optimizing SMT line speed, First Pass Yield (FPY), and tooling. IPC-9850 (Equipment Performance)
MP (Mass Production) Continuous process control and statistical monitoring. IPC-9191 (SPC Implementation)

2. Technical Pillar: DFM & DFA Audit (IPC-7351B Compliance)

Statistical data shows that 80% of mass-production failures are rooted in design-related issues. HCJMPCBA performs a comprehensive Design for Manufacturing (DFM) audit based on IPC-7351B (Generic Requirements for Surface Mount Design and Land Pattern Standards).

  • Aspect Ratio & Via Integrity: We verify via-in-pad designs and aspect ratios to ensure plating consistency, preventing “barrel cracking” during thermal cycling (referencing IPC-6012).
  • Solder Mask Defined (SMD) vs. NSMD: For fine-pitch BGAs (0.3mm to 0.5mm), we optimize pad design to reduce stress concentration at the solder joint interface.
  • Thermal Management: Analysis of copper weights and thermal relief patterns to prevent cold joints or “tombstoning” in high-speed SMT reflow.

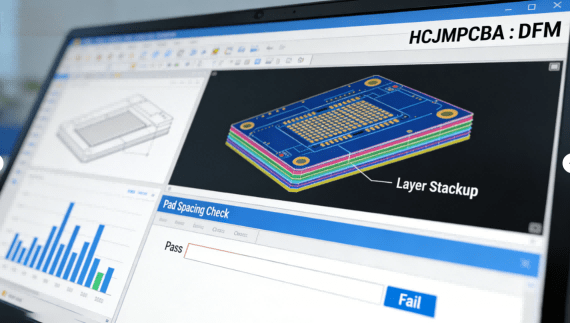

Dfm Software Analysis Interface Hcjmpcba

Dfm Software Analysis Interface Hcjmpcba

3. Component Reliability: Handling & Traceability (J-STD-020/033)

In mass production, component failure is often caused by improper handling rather than manufacturing defects. HCJMPCBA adheres strictly to:

  • Moisture Sensitivity Levels (MSL): Components are managed according to IPC/JEDEC J-STD-020. Any component exceeding its floor life is baked per J-STD-033 protocols to prevent “popcorning” during reflow.
  • Counterfeit Mitigation: Our Incoming Quality Control (IQC) follows AS6081 standards, utilizing X-ray imaging and decapsulation when necessary to verify die authenticity for high-stakes AI and medical projects.

4. In-Process Quality Gates: From SPI to 3D AOI

To ensure zero-defect scaling, we implement automated quality gates that align with IPC-A-610G Class 3 standards for high-reliability electronics.

Inspection Layer Process Control Technology Defect Prevention
Solder Paste (SPI) 3D Solder Paste Inspection (Closed-Loop) Insufficient volume, bridging, and offset.
Post-Reflow (AOI) Multi-angle 3D Automated Optical Inspection Non-wetting, lifted leads, and polarity errors.
BGA Integrity (AXI) Automated X-Ray Inspection (2.5D/3D) Solder voiding (limit < 25% per IPC-7095C), HiP defects.
3d X Ray Scan Image Hcjmpcba

3d X Ray Scan Image Hcjmpcba

5. Testing for Scalability: ICT and FCT Strategies

For mass market success, testing time must be optimized without compromising coverage. We develop custom Functional Circuit Test (FCT) jigs that simulate real-world operations, ensuring firmware and hardware synchronization. For high-density boards, we utilize In-Circuit Testing (ICT) or Flying Probe testing (per IPC-9252) to validate electrical continuity and component values.

Why the Transition from Prototype to Mass Production Often Fails

Many electronics projects successfully produce functional prototypes but encounter serious issues when scaling production. These challenges often arise because the design was optimized for functionality rather than manufacturability.

  • PCB layout not optimized for mass production
  • Component sourcing problems
  • Assembly yield issues during SMT production
  • Insufficient testing procedures
  • Poor communication between engineering and manufacturing teams

The NPI process addresses these challenges by validating every stage of the manufacturing workflow before full production begins.

The 6 Key Stages of the PCB NPI Process

1. Design Verification

The first step of the NPI process is verifying the design files and ensuring that the PCB layout meets functional and manufacturing requirements. Engineers review Gerber files, BOM lists, and assembly drawings to confirm accuracy.

Design rule checks (DRC) and engineering reviews help identify potential problems before fabrication begins.

2. PCB Prototype Fabrication

Once the design is verified, manufacturers produce PCB prototypes in small quantities. These prototypes allow engineers to test electrical performance, signal integrity, and thermal behavior.

Prototype testing helps detect design flaws early and reduces the risk of costly design changes later in production.

3. PCBA Assembly Validation

During this stage, prototype boards are assembled using SMT or through-hole assembly processes. Engineers verify component placement, solder quality, and assembly reliability.

Functional testing ensures that the assembled boards perform correctly under real operating conditions.

4. DFM and DFT Optimization

Design for Manufacturing (DFM) and Design for Testing (DFT) analysis are essential steps in the NPI process. Manufacturing engineers review the design to optimize production efficiency and reduce defects.

  • Pad design optimization
  • Solder mask adjustments
  • Panelization improvements
  • Testing point placement

These improvements help ensure consistent production quality during mass manufacturing.

5. Pilot Production

Pilot production involves building a small batch of boards using the full production process. This stage verifies manufacturing stability and ensures that assembly yield rates meet production requirements.

Any issues discovered during pilot runs are corrected before moving to full-scale manufacturing.

6. Mass Production

Once pilot production confirms stable yield and product reliability, the project moves into mass production. At this stage, large volumes of PCB assemblies can be manufactured with predictable quality and cost.

A successful NPI process ensures smooth scaling from prototype to production without unexpected engineering revisions.

Key Factors for Successful PCB Mass Production

To ensure a smooth transition from prototype to mass production, companies should focus on several key factors.

  • Early collaboration with PCB manufacturers
  • Comprehensive DFM review
  • Reliable component supply chain
  • Robust testing procedures
  • Clear documentation and version control

Manufacturers with strong engineering support can significantly improve the success rate of new product launches.

How HCJMPCBA Supports the NPI Process

At HCJMPCBA, the engineering team supports customers throughout the entire NPI workflow, from early prototype development to large-scale PCBA manufacturing.

  • Gerber file engineering review
  • DFM and DFT analysis
  • PCB prototype fabrication
  • SMT assembly and testing
  • Pilot production support
  • Mass production PCBA manufacturing

This integrated manufacturing capability allows customers to move efficiently from product development to market-ready production.

6. Conclusion: Your Partner in High-Volume Manufacturing

Moving from 1 to 10,000 units requires a partner who understands the science of manufacturing. HCJMPCBA provides more than just assembly—we provide an industrial-grade NPI framework that safeguards your hardware against common scaling pitfalls.

Ready to scale? Upload your Gerber and BOM today for a comprehensive NPI Readiness Review.

Frequently Asked Questions about PCB Scaling & NPI

Q: What is the primary difference between prototyping and mass production in PCBA?

A: Prototyping focuses on functional validation. Mass production (NPI) focuses on Design for Manufacturability (DFM), high-yield consistency, and supply chain stability, governed by standards like IPC-A-610 and J-STD-001.

Q: How does DFM reduce the cost of mass market PCB production?

A: By optimizing panelization (reducing material waste) and ensuring component land patterns are SMT-friendly (reducing rework), DFM can lower total production costs by 15-25% while increasing First Pass Yield (FPY).

Q: What solder voiding standards do you follow for mass production BGA assembly?

A: We strictly adhere to IPC-7095C standards. For most industrial and medical applications, we ensure solder voiding is kept below 20-25% of the solder ball area through 3D X-Ray validation.
