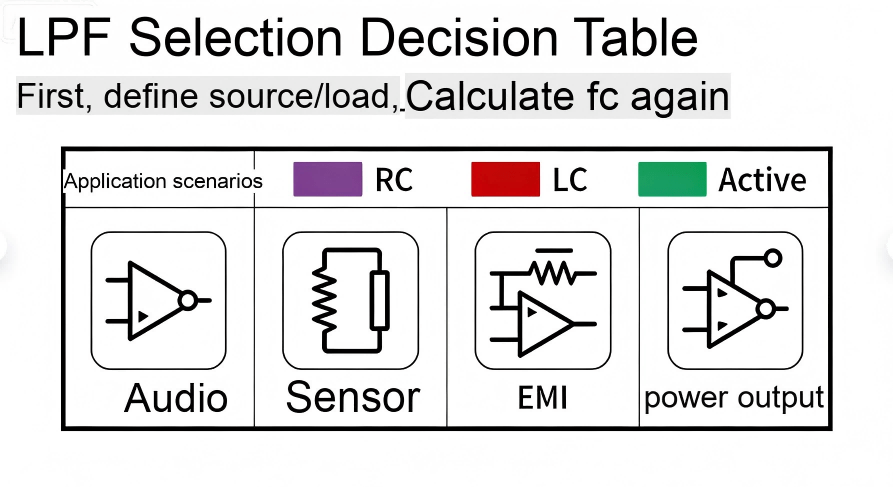

Illustration Of Lpf Selection Decision Table

Step-by-step: How to Design a Low Pass Filter That Works on Real Hardware

Step 1 — Define Requirements (Signal + Noise + Environment)

Write the requirements in measurable terms:

          Desired passband (what frequencies must remain).

          Noise/interference frequencies to attenuate (switching ripple, RF pickup, clock harmonics).

          Allowable passband attenuation (insertion loss).

          Allowable phase shift or group delay (especially for audio and control loops).

          Expected source and load impedance (or specify “must be buffered”).

Step 2 — Choose Topology (Passive vs Active)

          RC low pass filter: simplest, low cost, but strongly affected by load.

          LC low-pass filter: lower loss at higher power, but can resonate and is layout sensitive.

          Active low-pass filter: uses an op-amp (or active stage) to reduce loading sensitivity and shape response, but requires power and proper stability/bandwidth selection.

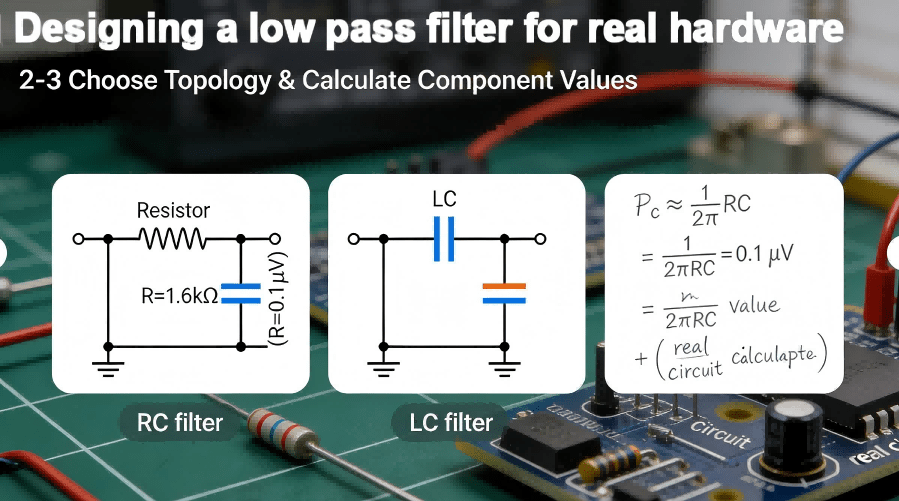

Step 3 — Calculate Initial Component Values (One Simple RC Example)

For a first-order RC low pass filter:

          fc≈12πRCf_c \approx \frac{1}{2\pi RC}fc​≈2πRC1​

Example: if you want ~1 kHz cutoff and choose R = 1.6 kΩ, then:

          C≈12π⋅1600⋅1000≈0.1μFC \approx \frac{1}{2\pi \cdot 1600 \cdot 1000} \approx 0.1 \mu FC≈2π⋅1600⋅10001​≈0.1μF

This is a starting point only. In real circuits, the effective R and C can change due to loading, input capacitance of the next stage, and parasitic capacitance/inductance on the pcb electronics layout.

Step 4 — LC Example Guidance (for Higher Power or Lower Loss)

For LC low pass filter design (a passive low pass), you often start from a known prototype (Butterworth/Chebyshev families) and then map values to your cutoff frequency and impedance environment. A common mistake is to pick an “example passive 100 kHz low-pass LC filter” from a calculator without matching the real source/load impedance and without validating resonance and component ESR.

In practice, for LC filters:

          Confirm the intended impedance (for example 50 Ω vs 75 Ω vs “unknown and variable”).

          Select inductor and capacitor with appropriate current rating, voltage rating, ESR, and tolerances.

          Expect layout to change behavior above tens to hundreds of kHz if the layout is loose.

Step 5 — Simulate With Tolerances and Parasitics

Do not stop at ideal simulation. Add:

          Component tolerances (±1%, ±5%, ±10%).

          Capacitor ESR/ESL, inductor DCR, parasitic capacitance of nets.

          Source and load models.

Output to save (and later verify): response plots and tolerance bands that become acceptance criteria.

Step 6 — Prototype Correctly (Breadboard vs PCB)

A breadboard low pass filter is helpful for low-frequency demonstrations, but it can mislead for higher-frequency designs because:

          Breadboards add parasitic capacitance and inductance.

          Lead lengths create unintended resonant networks.

For any design sensitive above a few kHz to tens of kHz (and certainly for EMI/switching noise), a small PCB prototype is the safer validation method.

Step 7 — Layout Rules That Preserve Filter Intent

Treat the filter as a controlled impedance network:

          Keep RC/LC components close together.

          Minimize loop area for LC sections.

          Provide a solid ground return path; avoid splitting ground beneath sensitive sections.

          For LC filters, avoid long traces from inductor to capacitor (they add inductance and can reduce attenuation).

How To Design A Low Pass Filter That Works

Verification Table: Acceptance, Evidence, and Traceability

The fastest way to reduce engineering rework and procurement disputes is to define verification deliverables in a table. Below is a practical template you can copy into your internal specification.

Notes: The method IDs above are examples of a revision-controlled procedure format. The key is that the procedure is versioned and repeatable.

Schematic Diagram Of The Test Bench

Copy-Paste Requirement Clause

Supplier shall verify the low-pass filter frequency response on production units and provide a report including method ID and revision, sample plan, test conditions (source/load, sweep settings, temperature), and raw data (CSV/plots). Traceability must link results to lot/batch/serial identifiers. Acceptance criteria: cutoff frequency within ±X% and attenuation ≥Y dB at specified stopband frequency.

Common Mistakes

          1.Ignoring load impedance: a low pass filter circuit may shift cutoff when connected to a real amplifier or ADC input.

          2.Validating high-frequency behavior on a breadboard: parasitics can mask problems or create false confidence.

          3.Choosing “steeper order” without stability checks: higher order can create ringing, peaking, or phase issues.

          4.LC layout too loose: long traces and poor ground return reduce attenuation and can introduce resonance.

          5.No consistent test conditions: changing sweep bandwidth, fixture wiring, or source/load breaks comparability between lots.

Real-world Scenarios: When to Use Which Low-Pass Approach

Scenario A — Low Pass Filter Audio in an Amplifier Chain

A low pass filter on amplifier input or feedback paths can limit bandwidth and reduce high-frequency noise. The practical priority is not only cutoff frequency, but also phase behavior, noise floor, and distortion. Engineers should define measurement bandwidth and input levels so results are repeatable.

Scenario B — Sensor Anti-Aliasing Before an ADC

An anti-alias low-pass filter prevents high-frequency components from folding into the sampled band. Here, cutoff selection must leave margin below the Nyquist frequency (half the sampling rate). The verification focus is fc accuracy and stable response across component tolerance and temperature.

Scenario C — EMI/Switching Noise Shaping

For switching regulators or PWM-like signals, LPFs are used to attenuate switching harmonics. LC filters can help, but resonance and layout can dominate. Verification should explicitly measure attenuation at switching frequency and key harmonics with fixed fixture conditions.
