Direct Answer

A high-performance Robotics PCBA must prioritize structural integrity, thermal resilience, and signal precision. Unlike standard boards, a robot circuit board operates under constant vibration and varying thermal loads. This guide is maintained by the HCJMPCBA engineering team and updated with production checklists to ensure global compliance with IPC-A-610 Class 3 standards.

3 Key Takeaways

1. Zero-Failure Soldering: Why automated soldering is mandatory to prevent vibration-induced cracks.
2. Total Traceability: The necessity of traceability (lot/batch/serial) for field-failure analysis in robotics.
3. DFM-First Strategy: How early-stage design review reduces PCBA prototype iterations by 40%.

1. Why Robotics PCBA Is Different from Standard Consumer Electronics

A robot circuit board is not just another PCB. It often controls motion, sensing, communications, power stages, and safety logic simultaneously. Unlike low-duty consumer devices, robots may run continuously in factories, warehouses, laboratories, farms, or public environments.

Typical robotics use cases include:

• Autonomous mobile robots (AMR)
• Industrial robotic arms
• Cleaning robots
• Medical assistive robots
• Inspection robots
• Service robots
• Educational robotics platforms

That means the pcb robot architecture must tolerate real-world stress, not just pass a bench test.

2. Feature

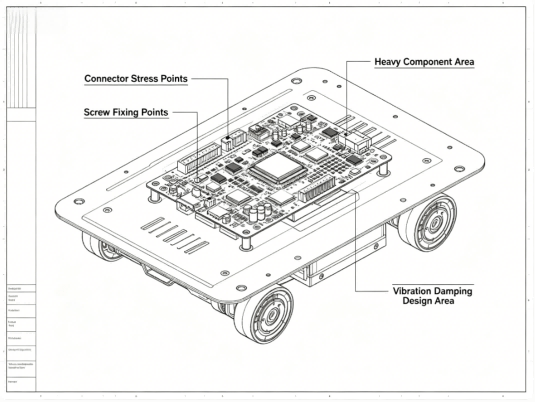

2.1: Resilience Against Mechanical Stress

Robots move. They stop suddenly. They vibrate. They may collide, carry loads, or travel over uneven surfaces.

A robotics PCBA should therefore consider:

• PCB thickness matched to enclosure and connector loads
• High-Tg materials when thermal/mechanical stress is expected
• Reinforced mounting zones
• Strain relief for cable exits
• Proper support for tall components
• Secure heavy parts such as transformers, coils, or large capacitors

Repeated micro-vibration can crack solder joints over time. This is especially relevant for wheel-drive robots, robotic arms, and mobile platforms.

What to ask a supplier:

Do they review connector anchoring, board flex risk, and component retention before production?

2.1 Feature #2: Signal Integrity for High-Speed Logic

Modern circuit robotics systems often integrate:

• MCU / MPU controllers
• CAN bus
• Ethernet
• USB
• Wi-Fi / Bluetooth
• Camera modules
• Encoder feedback
• Motor driver communications

Poor layout or weak assembly quality can create unstable behavior that appears “random” in the field.

Key design and manufacturing controls include:

• Controlled impedance where required
• Proper return paths
• Ground segmentation strategy
• Noise isolation from motor power stages
• Differential pair routing discipline
• Clean reflow process to avoid intermittent opens

For a circuit board robot, stable signals matter as much as code quality.

2.2 Feature #3: Power Density and Thermal Dissipation

Many robots combine logic boards with motors, battery systems, charging circuits, or LED loads. Heat is often underestimated.

A strong robotics board should evaluate:

• Copper weight for current paths
• Thermal vias under power devices
• MOSFET heat spreading
• Connector temperature rise
• Airflow constraints inside enclosure
• Continuous vs peak current demand

Ignoring thermal behavior is a common cause of resets, reduced battery life, and premature failure.

2.3 Feature #4: Robust Interconnects and Robotic Soldering Quality

Many field failures come from connectors, terminals, or manually stressed joints.

This is where robotic soldering, automated soldering, or selective process control becomes valuable. Repetitive high-stress joints often benefit from repeatable solder volume, dwell time, and temperature control.

Examples:

• Battery harness connectors
• Motor terminals
• High-cycle switches
• Power sockets
• Sensor cable headers

A reliable factory should know when SMT reflow is enough and when robotic soldering or secondary reinforcement is justified.

2.4 Feature #5: EMI Resistance and Stable Operation

Motors, relays, switching regulators, and wireless modules can coexist on one board. Without noise control, robots may:

• Reset unexpectedly
• Lose communication
• Misread sensors
• Drift in motion control
• Fail EMC testing

Mitigation methods include:

• Decoupling strategy
• Shielding design support
• Ground continuity
• Filtering at interfaces
• Separation of noisy and sensitive zones

2.5 Feature #6: Serviceability and Lifecycle Support

Robotics programs often stay in service for years. Replacement boards must match prior revisions.

Important lifecycle practices:

• Controlled BOM revision history
• Approved alternate parts process
• Firmware labeling alignment
• ECO change records
• Spare-part continuity planning

A supplier focused only on shipment date may ignore long-term service cost.

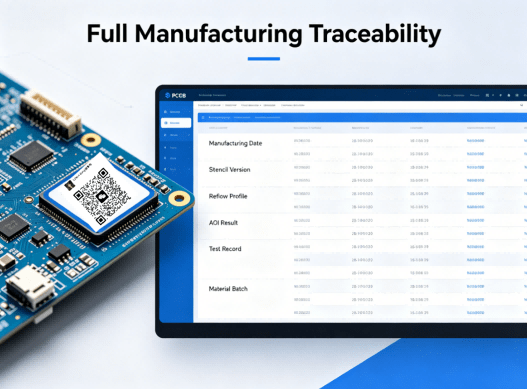

2.6 Feature #7: Full Manufacturing Traceability

When 5,000 units are in the field, the question is not “Did we build them?” but “Which exact batch used that component lot under which process revision?”

Strong traceability should include:

• Lot number
• Batch number
• Serial number
• Date code linkage
• Operator / line record
• Test result linkage
• Material lot references

This reduces containment time if a supplier issue appears later.

3. Decision Table: How to Choose a Robotics PCBA Manufacturer

4. Verification Table: What Evidence to Request

5. The HCJMPCBA Manufacturing Framework

5.1 Systematic Process Control (Method Number + Revision)

Each controlled operation should be linked to a documented method number and revision status. Examples:

• SMT Print Control WI-021 Rev.C
• Reflow Profile Spec PR-008 Rev.B
• Final Inspection STD-QA-014 Rev.D

Why this matters: operators follow the current standard, not memory.

5.2 Sample Plan & Validation

Before mass release, validation should define:

• Pilot quantity
• Critical checks
• Acceptance limits
• Reliability samples
• Escalation criteria

Sampling may align with customer requirements or recognized AQL frameworks depending on project risk.

5.3 Advanced Test Conditions

A serious robotics build should not stop at visual inspection.

Possible controls:

• SPI (paste volume)
• AOI
• X-Ray
• ICT (where applicable)
• FCT
• Burn-in (if specified)
• Power-on current checks
• Communication port verification

Test conditions should state voltage, load, temperature, firmware version, pass criteria, and fixture revision.

5.4 Raw Data Retention

Pass/fail is useful. Raw data is better.

Examples:

• Voltage readings
• Current draw
• Sensor calibration values
• Torque board output references
• Communication latency logs
• Temperature measurements

Raw data supports engineering decisions later.

5.5 End-to-End Traceability

HCJMPCBA supports production-oriented traceability practices for lot/batch/serial management, enabling faster root-cause isolation and controlled corrective action during mass production programs.

The HCJMPCBA Advantage: Advanced Manufacturing Framework

At HCJMPCBA, we don’t just assemble; we engineer reliability. Our robotics manufacturing process follows a strict Method Number + Revision system to ensure consistency across batches.

Automated Soldering & Precision SMT

Robotics applications often involve high-stress environments. Standard manual soldering cannot guarantee the repeatability required for a circuit robotics system. We utilize automated soldering machines and robotic soldering stations to ensure every joint meets the wetting requirements of J-STD-001. Using a solder robot eliminates the human error factor in high-density robot solder points.

Rigorous Test Conditions & Raw Data Transparency

Trust is built on data. For every automated pcb assembly project, we provide:

• Sample Plan: Based on AQL 0.65/1.0 or client-specific requirements.

• Test Conditions: Including AOI, 3D X-Ray for BGA integrity, and In-Circuit Testing (ICT).

• Raw Data Access: Clients can request the original testing logs to verify the performance of their automated circuit board assembly.

Decision Table: Choosing the Right Robotics PCBA Partner

Feature	Standard Workshop	HCJMPCBA (Premium)
Soldering Tech	Manual/Standard Wave	Automated Soldering / Robotic Solder
Traceability	None or Batch only	Full Lot/Batch/Serial Traceability
Standard	IPC Class 1	IPC-A-610 Class 2/3
Design Review	Basic Check	Deep DFM & SI/PI Analysis

Verification Table: Evidence of Reliability

Artifact	Purpose	Evidence for Client
Method Revision	Consistency	Process Control Document (PCD)
X-Ray Logs	Internal Integrity	3D Imagery of BGA/QFN Joints
IQC Reports	Component Quality	Verified traceability (lot/batch) of ICs

6. Step-by-Step Guide to Sourcing Robotics PCBA

Step 1: Define the Real Operating Environment

State vibration, duty cycle, temperature range, ingress risk, and expected service life.

Step 2: Submit Complete Engineering Data

Provide:

• Gerber / ODB++
• BOM with approved alternates
• Assembly drawings
• Programming files
• Test expectations

Step 3: Run DFM Review Before PO Release

Check footprints, panelization, polarity risk, connector access, thermal bottlenecks, and sourcing constraints.

Step 4: Validate with Pilot Build

Build a controlled sample lot before full production.

Step 5: Approve Test Conditions and Reports

Define what data must be reported, not only “PASS”.

Step 6: Launch Controlled Mass Production

Freeze revision status, labeling logic, and change approval workflow.

7.Copy-Paste Requirement Clause

Supplier shall manufacture Robotics PCBA to approved revision-controlled files only.
Supplier shall maintain lot/batch/serial traceability for materials and finished assemblies.
Supplier shall provide agreed test records including defined electrical test conditions.
No component substitution is permitted without written approval.
Process changes require documented notification and authorization.

8. 5 Common Mistakes in Robotics PCBA Sourcing

1. Buying only on unit price
2. Ignoring vibration and connector stress
3. Sending incomplete BOM data
4. Accepting pass/fail reports without raw data
5. Allowing uncontrolled substitutions during shortages

9. Real-World Scenario: When to Use This Method Family

An AMR fleet uses battery-powered control boards in warehouses operating 16 hours per day. Initial prototypes worked, but field returns appeared after three months. Root cause analysis found connector fatigue plus inconsistent replacement components.

With controlled sourcing, reinforced solder strategy, serial traceability, and validated alternates, repeat failures dropped sharply. This is why robotics programs need manufacturing systems, not just assembly capacity.

10. FAQ

Q1. What is a Robotics PCBA?

A PCB assembly designed for robotic control, sensing, communication, and power functions under dynamic operating conditions.

Q2. Is robotic soldering better than manual soldering?

For repetitive critical joints, robotic soldering often improves consistency, parameter control, and documentation.

Q3. What is the difference between PCB and PCBA?

PCB is the bare board. PCBA is the assembled board with components installed and tested.

Q4. Why does traceability matter in robot circuit board production?

It shortens containment time, supports recalls, and accelerates root-cause analysis.

Q5. Should every robot board use X-Ray inspection?

Not always. It is most useful for hidden joints such as BGA, QFN voiding concerns, or high-risk assemblies.

Q6. What files should buyers send first?

Gerber, BOM, assembly notes, test needs, annual volume, and target application.

Q7. Can automated soldering machines reduce defects?

Yes—when correctly programmed and validated, automated soldering machines improve repeatability on suitable joints.

Q8. How should buyers compare suppliers?

Compare engineering depth, process control, evidence quality, responsiveness, and long-term support—not only price.

Q9: Why is automated soldering critical for a robot circuit board?

A: Robots involve moving parts. Automated soldering ensures uniform solder fillets that withstand mechanical fatigue far better than manual joints.

Q10: What standards does HCJMPCBA follow for pcb robotics?

A: We strictly adhere to IPC-A-610G and J-STD-001, often providing Class 3 (Medical/Aerospace grade) reliability for industrial circuit robotics.

Q11: How do you handle component shortages for robotics projects?

A: Our Component Sourcing team provides BOM optimization and suggests verified alternatives to ensure the automated pcb assembly timeline isn’t delayed.

11. Evidence You Can Request

During audit or RFQ review, buyers can request:

• Example traveler or route card
• Method number + revision records
• First article report
• AOI/X-Ray samples
• Test condition templates
• Traceability screenshots
• Corrective action example
• Change control workflow
• Sample packaging standard12. Final Recommendation

A reliable Robotics PCBA partner does more than populate components. It helps prevent failure before production starts, proves process capability with evidence, and protects scale-up with disciplined controls.

For robotics programs, sourcing quality is a design decision.

CTA

For more information about PCBA services, please contact Guangzhou Huachuang Precision Technology（HCJMPCBA）.

Update triggers: standard revision changes / recurring questions / production checklist updates.
